Increase productivity with the following MSD features:
Either a 90 L/sec vapor-diffusion or a 250 L/sec turbomolecular high vacuum pump
Independently heated electron-ionization ion source
Independently heated hyperbolic quadrupole mass filter
Independently heated GC/MSD interface
Power supplies and instrument control electronics
The compatible data analysis software works best with PCs that run on Microsoft® Windows XP Professional operating system. This software can be purchased as a single instrument basic data analysis software. Each version includes data acquisition, instrument control, data analysis, automation and customization features.

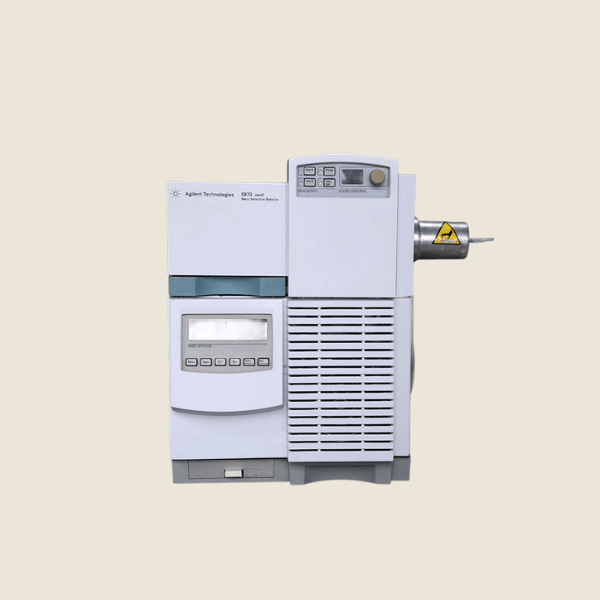

Applications integrated into the software allow for the configuration and customization of the instruments including the HP 5973 and other MSDs. Tuning programs are responsible for voltage regulation in the ion source, calibration of mass assignments and scanning of the control analyzer.
Applications for data acquisition allow users to keep an eye on the total ion chromatogram (TIC). The mass spectra of GC peaks can be stored automatically by using the same type of program, specifically by using the scan mode. The selected ion monitoring (SIM) SIM mode allows selective monitoring of particular ions. Data analysis programs permit integration of chromatograms in TIC or SIM as well as the viewing and manipulation of mass spectral data. Users can compare obtained spectra to reference spectra databases in a library search. Users can also quantify data and generate reports with information-analyzing applications.
